SFR-S18-FTD

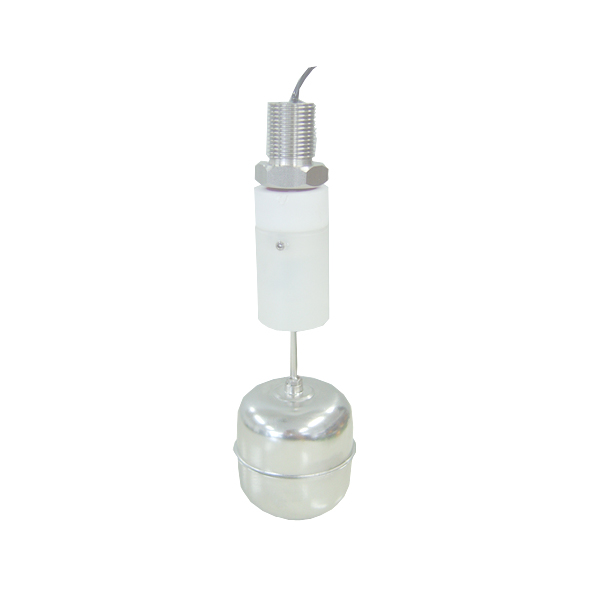

모델명 : SFR-S18-FTD
Material
(재질)
:
* Stem (sus304/sus316)
* Float (sus316L)
Switching Current Max
(용량)
:
* DC&AC 100V用 0.5A
* Option DC&AC 250V用 1A
Pressure
(압력)
:
* 10 ㎏f/㎠
Operation Temperature
(온도)
:
* 100 ℃
* Optiom   ℃
Suitable S.G
(비중)
:
* 0.5
Reversible Switch Action
(방향)
:
* Yes
Lead Wire
(전선)
:
* Optiom

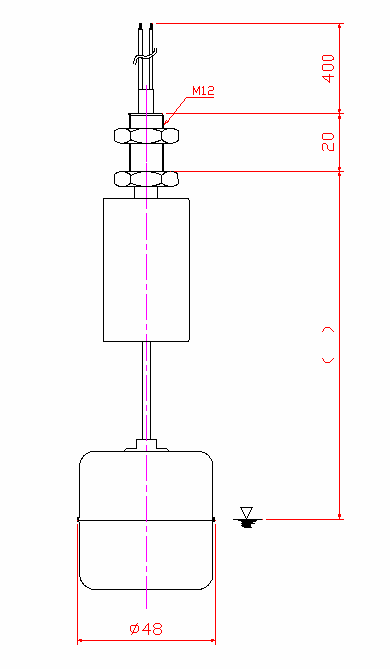

Mounting Size
(조립)
:
 *  M12 , ( Optiom)
Applicatioms
(Use for) (사용처)
:
* Water, Oil, medical liquid







             (SFR-S18-FTD)
